Prefabrikované steny

Concrete has had a strong place in the construction industry for many years. Thanks to its properties, it is among the most used building materials. Currently, technology is needed that will meet the demanding quality requirements of investors and ensure deadlines for handing over the work. It is necessary that this technology includes the advantages of monolithic constructions and prefabricated elements. The company Leier Baustoffe SK started the production of prefabricated elements in 2004 and today offers prefabricated elements that have a very wide range of uses. Their advantage is mainly saving time and money.

Assortment

slide 1 of 4

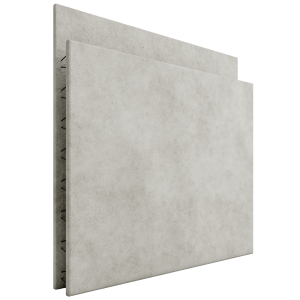

Leier filigree walls

Leier filigree walls

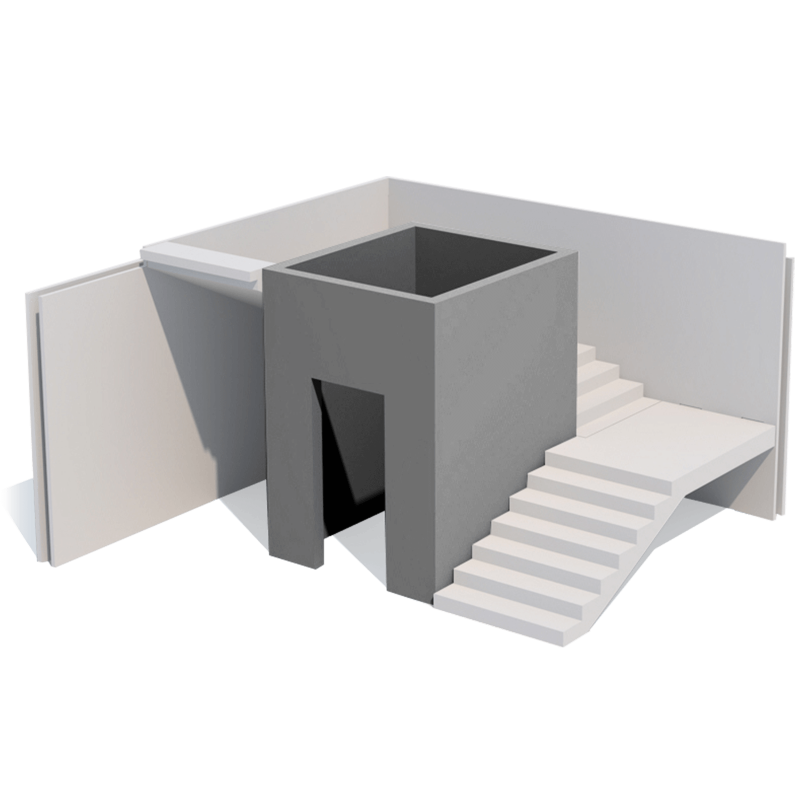

The walls are produced in high quality and in a variety of shapes according to the customer's individual requirements. They consist of two reinforced concrete slabs, already connected by spatial reinforcement during production (vertical main and horizontal distribution reinforcements). The statically necessary reinforcement is already built into the boards, which ensures the maximum economy of the structure. After concreting the intermediate space, double filigree walls form a full-fledged replacement for monolithic walls. They are used for quick and economical construction of underground and above-ground parts of buildings. By using this custom-designed system, the construction time is significantly shortened, thereby reducing the total construction costs and significantly saving working time. Assembly is quick, as no additional formwork or reinforcement is required. They are mainly used for the construction of: retaining walls, basement walls, walls separating individual housing units, elevator shaft walls. By using filigree wall panels, it is possible to create walls with a thickness of 18, 20, 25, 30, 35 and 40 cm. The surface of the walls is smooth on both sides, almost without pores and thus ready for troweling and subsequent painting or wallpapering, without the need for plastering.

Production possibilities of filigree walls:

  • reinforcement baskets
  • reinforcement networks
  • different thickness of the outer and inner panel (5-7 cm)
  • production of walls with a height of less than 1 m
  • production of walls with a height greater than 3 m
  • production of walls with an area of less than 5 m2
  • production of inclined panel
  • creation of an opening for the connection of a platform, stairs, monilit concrete
  • omitting holes
  • installation of electrical box, installation electrical hose
Declaration of parameters LE GY13225-01-SKDownload
Declaration of parameters LE JS13225-02-SKDownload
Product detail

Parameter declarations

Declaration of parameters - LE-GY13225-01-SK Declaration of parameters - LE-GY14992-02-SK Declaration of parameters - LE-GY15258-02-SK Declaration of parameters - LE-JS13225-02-SK Declaration of parameters - LE-JS15258-02-SK Declaration of parameters - LE-KL14992-02-SK Declaration of parameters - LE-GY14992-03-SK Vyhlásenie o parametroch - LE-ZU14991-02-SK Vyhlásenie o parametroch - LE-ZU14992-03-SK Vyhlásenie o parametroch - LE-ZU15258-02-SK

Brochures for download

Instructions for download

Photo gallery

Videos

slide 1 of 6
